Hydraulic Clamping Devices

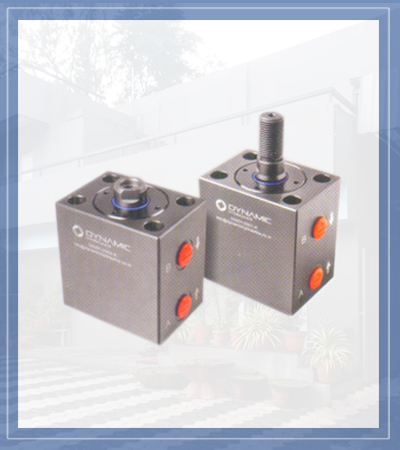

Compact Cylinder

Information

The Compact cylinder is designed to be space space-saving and compact product. Dynamic Hydraulics provides various sizes of Compact cylinders.

• Hardened and chromed alloy steel piston rods run longer with less wear.
• Wiper seals reduce contamination of dust for the longer runs of the Compact cylinder.
• Special coating on the cylinder body helps prevent rusting and scratching.

Specifications

• Minimum operating pressure: 10 Bar
• Maximum operating pressure: 150 Bar
• Operating temperature: 10 - 70 °C

Swing clamp

Information

The Swing clamp rotates 90 degrees (Clockwise or Counterclockwise) to clamp the workpiece. Clamping force is applied to a structure in a vertical direction to ensure stable Clamping.

• Hardened and chromed alloy steel piston rods run longer with less wear.
• Wiper seals reduce contamination of dust for the long run of Swing clamp.
• Special coating on the cylinder body helps prevent rusting and scratching.

Specifications

• Minimum operating pressure: 15 Bar
• Maximum operating pressure: 70 Bar
• Operating temperature: 10 - 70 °C

Link clamp

Information

The Link clamp is designed with sufficient unclamp angle and compact size so that there is no interference when loading and unloading the workpiece takes place, maximising designer convenience.

• Hardened and chromed alloy steel piston rods run longer with less wear.
• Wiper seals reduce contamination of dust for the long run of the Link clamp.
• Special coating on the cylinder body helps prevent Rusting and scratching

Specifications

• Minimum operating pressure: 10 Bar.
• Maximum operating pressure: 70 Bar.
• Operating temperature: 10 - 70 °C

Work support

Information

Work support provides solid adjustable support to parts and Work support will work in most applications where part distortion, deformation, and chatter conditions occur. They can eliminate or reduce most of the problems caused by part movement during machining. Available in two variants, Threaded body and Flange body Work support.

• Work support capacity should be equal to or greater than 1.5 times clamping force plus machining force.
• Wiper seals reduce contamination of dust for the long run of Work support.
• Special coating on the cylinder body helps to prevent rusting and scratching.

Specifications

• Minimum operating pressure: 25 Bar.
• Maximum operating pressure: 70 Bar.
• Operating temperature: 10 - 70 °C.

Oil intensifier

Information

An Oil intensifier is used to boost the low-pressure output in the hydraulic high-power unit. If the oil output of an intensifier is sufficient for clamping elements, the circuit as shown in Figure 1 can be used. If the oil requirement of clamping elements is more than the output of an intensifier, then the prefill circuit can be used as shown in Figure 2.

• Hardened and chromed alloy steel piston rods run longer with less wear.
• Special coating on the Oil intensifier helps to prevent rusting and scratching.

Specifications

• Minimum operating pressure: 25 Bar.
• Maximum operating pressure: 70 Bar.
• Operating temperature: 10 - 70 °C.

Sequence valve

Information

A sequence valve that is installed between two or more branch circuits and controls the operation sequence in the circuit by pressure.

• Special coating on the Sequence valve helps to prevent rusting and scratching.

Specifications

• Minimum operating pressure : 20 Bar
• Maximum operating pressure : 150 Bar
• Operating temperature : 10 - 70 °C

External Ports:

• Compact design
• Cartridge-type design - alloy steel body for external piping
• Operating pressure : 20 Bar - 150 Bar
• Operating temperature : 10 - 70 °C

Internal Ports :

• Compact design.
• Cartridge - type design - alloy steel body for external piping.
• Ring port available on the body.
• Operating pressure : 20 Bar - 150 Bar.
• Operating temperature : 10 - 70 °C.

Rotary joint

Information

The Rotary joint transmits hydraulic lines from the stationery to the rotary fixture. (For various types of 4th axis drive)

• Special coating on the Rotary joint helps to prevent rusting and scratching.

Specifications

• Maximum RPM = 30
